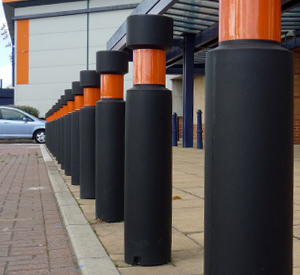

DDA100

The DDA 100 is based on the popular EB 100 bollard, and is DDA and BS EN 8300:2001 compliant. Highly versatile, this bollard is suitable for a wide range of applications. The bollard sleeve is manufactured from rugged medium density polyethylene (MDPE) and features a high strength mild steel core, galvanised to ensure its longevity. The sleeve is fully removable making it easy to replace if damaged.

The DDA 100 complete are supplied with a 150mm reflective band for increased visibility. The bollard is supplied black as standard, other RAL colours are available on request.

Available ragged, flanged and removable.

Features

• UV stable sleeve with a durable textured finish
• Standard colour black, other colours to order.
• Manufactured from high grade MDPE
• 100% recyclable
• Galvanised steel core for added durability
• The DDA100 is fully compliant with BS 8300:2001.

Specification

Sleeve

• 1000mmabove ground
• 180mm diameter
• 1 x 150mm reflective band (included when ordering complete unit - colour to be specified at time of order)

Core

• 1220mm overall length (usually 400mm below ground)
• 114mm diameter
• 3mm wall thickness

Additional Information

• Flanged and removable versions also available
• Can be reinforced as required (ragged only)
• Removable versions are secured using a padlock and include the steel core
• Ragged ends as standard
• Tape colours available - Red, Orange, Yellow, White or Black
