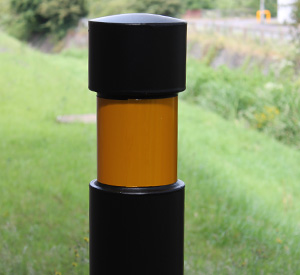

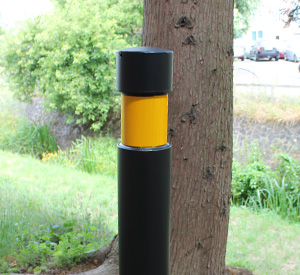

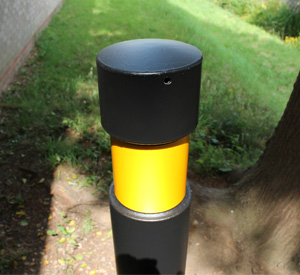

Stepped Bollard

A functional bollard, robust in design; the Stepped Bollard is constructed using mild steel, galvanised to ensure its longevity. The step offers a decorative feature with the option of adding reflective tape for added visibility.

The bollards are available in a galvanised and a galvanised and coated finish. RAL numbers must be specified at time of order.

Supplied ragged as standard, flanged and removable versions are also available. Removable bollards are secured using a padlock attaching to a ground socket.

Features

• Galvanised finish as standard
• Ragged ends as standard
• Flanged for bolting down available
• Removable versions with ground socket are available
• Step height of stepped bollards is 150mm, will fit tape to 130mm

Specifications

• 1000mm above ground
• 400mm below ground (330mm for 139mm diameter)
• 5mm wall thickness (3mm for 152 diameter)

Options

• 139mm stepping to 114mm
• 152mm stepping to 139mm
• 168mm stepping to 139mm
• 150x150mm stepping to 140x140mm

Additional information

• Also available flanged for bolting down and removable
• Re-inforced option available
• Re-inforced bollards are not available removable or flanged
• Galvanised finish is standard, colour coated options available on request
