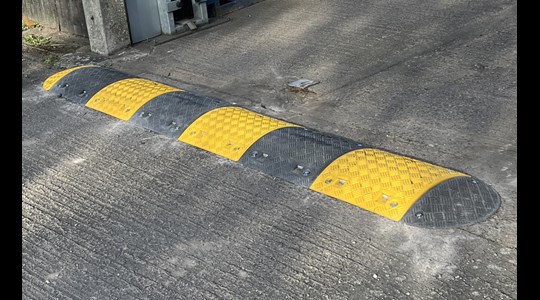

Speed Ramp (75mm)

The AUTOPA Speed Ramp 75 is a highly effective way of controlling traffic speeds and is designed to slow traffic to approximately 5mph. The high visibility combination of black and yellow sections with white reflectors ensure that the ramp can be seen in all weather conditions. Manufactured from heavy duty recycled PVC, these ramps are highly durable and are suitable for all vehicles including HGV’s with pneumatic tyres up to 44 tonnes.

Fully modular, AUTOPA’s speed ramps are made up of a variety of sections (each sold separately), allowing any length of speed ramp to be created as required. All shoulders and inners are available in black or yellow.

FEATURES

• Made from heavy duty recycled PVC.
• Each segment includes white reflectors which provide excellent night and bad weather visibility.
• Both ends and inners are available in black and yellow.
• Segments are sold separately to accommodate any road width.
• All bolts, fixings and reflectors are included with the ramp segments (bolts supplied are recommended for concrete fixing).
• Also suitable for HGV's up to 44 tonnes.
• Not suitable for solid tyred vehicles such as solid tyred folk lift trucks.

SPECIFICATIONS

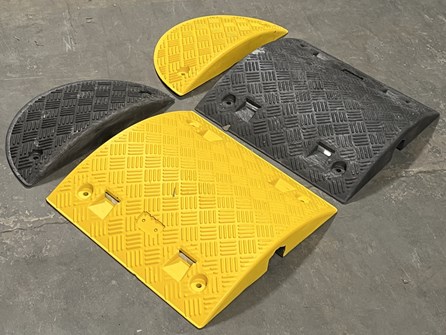

Inner section

• Length 500mm
• Width 500mm
• Height 75mm

Shoulder section

• Length 260mm
• Width 500mm
• Height 75mm

ADDITIONAL INFORMATION

• 75mm high ramps slow traffic to 5mph.
• Warning signs should be used to alert road users.
• Due to variable specifications of vehicle designs some "grounding" of vehicles on ramps may occasionally occur.

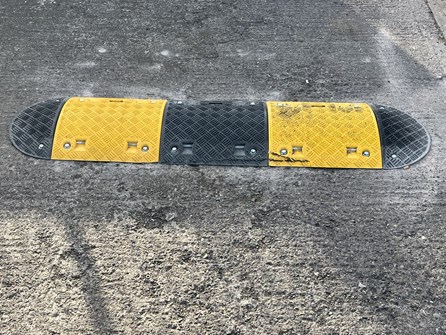

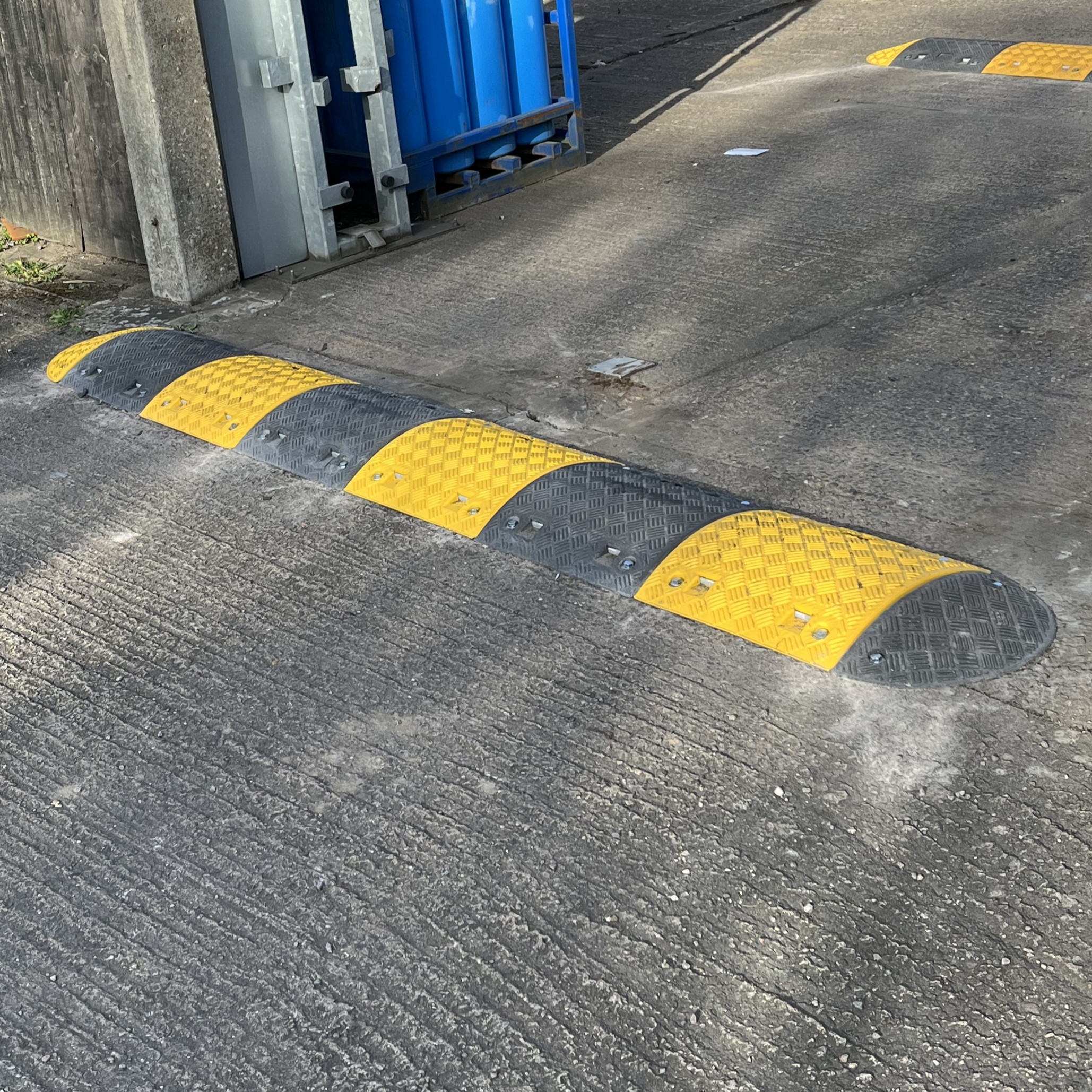

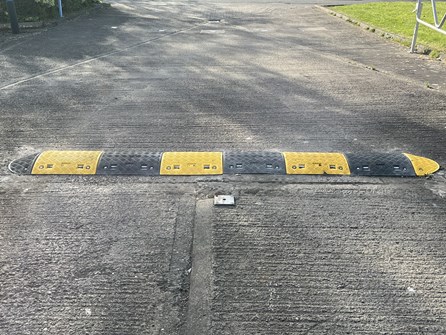

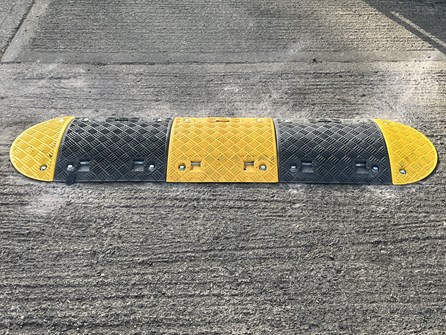

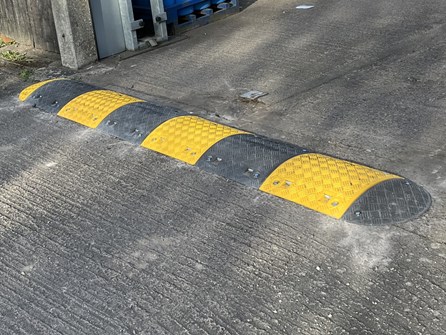

Gallery
