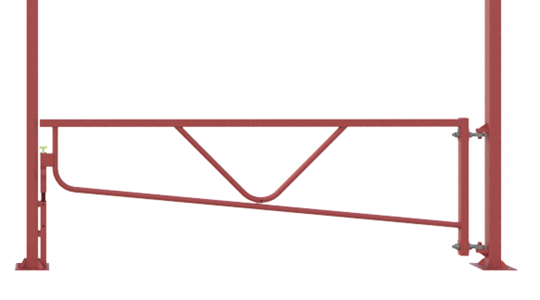

Single Fixed Height Restrictor with Swing Gate

Fixed Height Restrictors are designed to restrict access to high sided vehicles such as HGV’s and caravans. An ideal solution for areas such as staff or public car parks where a maximum height may apply, with the lockable lower gate provides an extra security when needed.

Manufactured from galvanised mild steel, the body of the height restrictor is coated red as standard (other colours are available upon request; please state BS/RAL numbers at time of order). The Fixed Height Restrictor is available ragged or flanged and can be fitted with a knocking bar and/or a maximum height warning sign.

FEATURES

• All fabrication of galvanised steel construction.
• Finish coated red (with white class 2 reflective tape on the optional knock bar).
• Single height restrictor up to 7m width.

SPECIFICATIONS

• Galvanised steel main post construction 90 x 90 x 3mm.
• Base 400 x 400 x 10mm thick.

ADDITIONAL INFORMATION

• Available ragged for casting in or flanged for bolting down.
• 600mm below ground (ragged version)
• Four 16mm bolts required for each leg (flanged version).
• Knocking bars available.
• Road warning signs are available.
