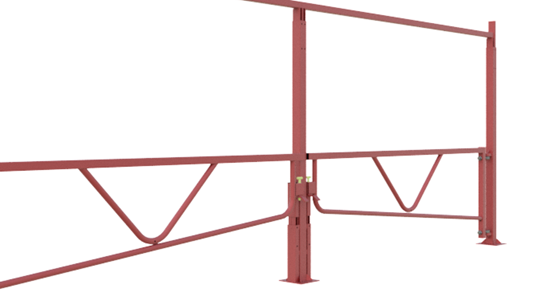

Double Fixed Height Restrictor with Swing Gate

The AUTOPA Double Fixed Height Restrictor with Double Swing Gates has a standard clearance of 2050mm (knocking Bar), limiting access to high sided vehicles. Ideal for use on commercial sites such as retail parks, it spans two carriageways, preventing vehicles from circumventing the access control measures in place.

Manufactured from galvanised mild steel, the system is coated red as standard (other colours are available upon request; please state BS/RAL numbers at time of order). The gates can be locked in the closed and open positions (additional catch post required) using padlocks (available separately).

FEATURES

• Galvanised steel construction.
• Finish coated red (with white class 2 reflective tape on the optional knock bar).
• Additional catch post will be required if the gates are to be locked in the open position.
• Standard widths from 6m - 12m.

SPECIFICATIONS

• Galvanised steel main post construction 90 x 90 x 3mm, Base 400 x 400 x 10mm
• 2050mm ±70mm standard clearance to knocking bar

ADDITIONAL INFORMATION

• Available ragged for casting in or flanged for bolting down.
• 600mm below ground (ragged version)
• Four 16mm bolts required for each leg (flanged version).
• Knocking bars available.
• Road warning signs are available.
