Manufactured in Great Britain

Velopa
Model R Cycle Holder

£POA

Make Enquiry

Further Information

Downloads CAD Request

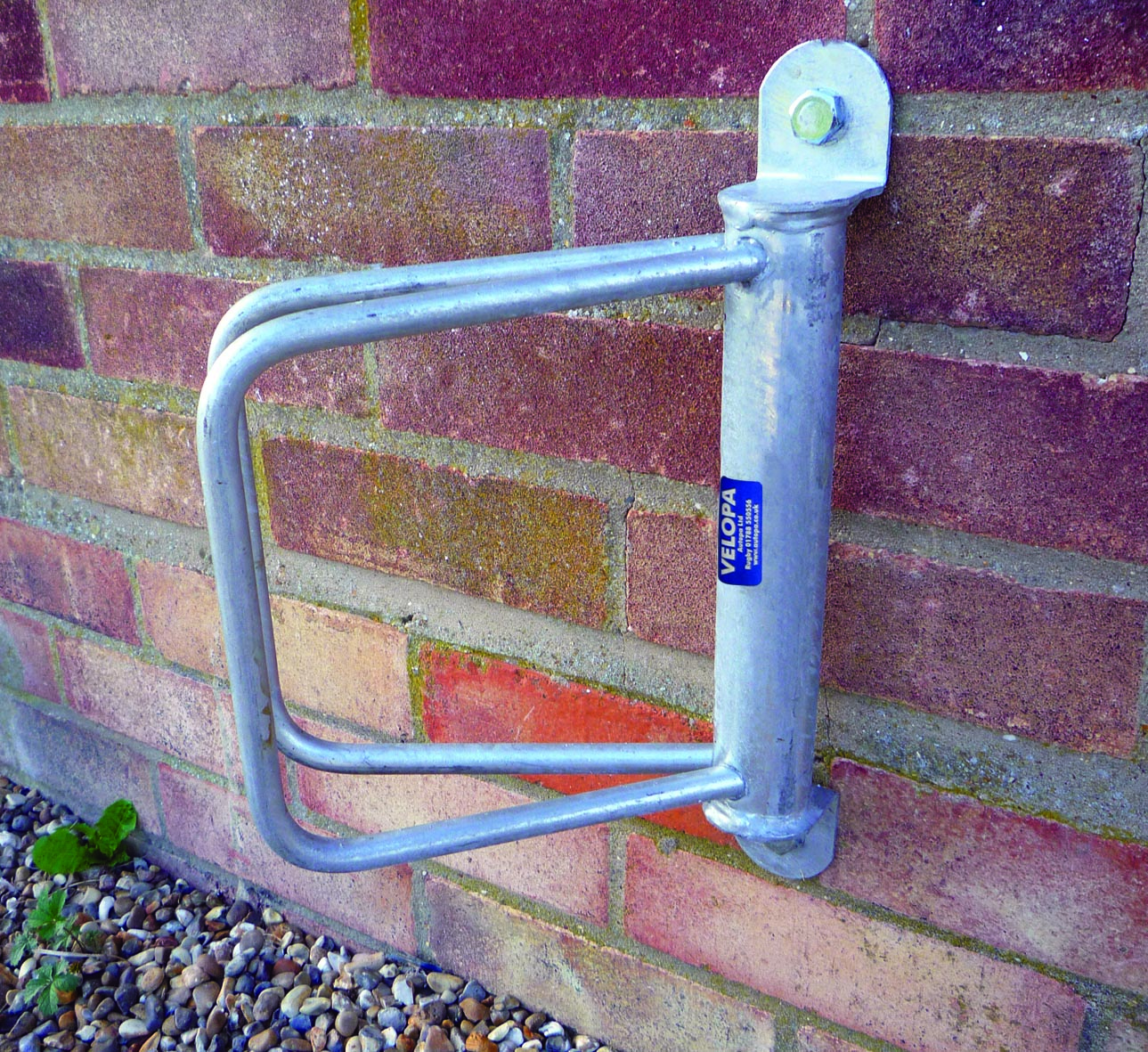

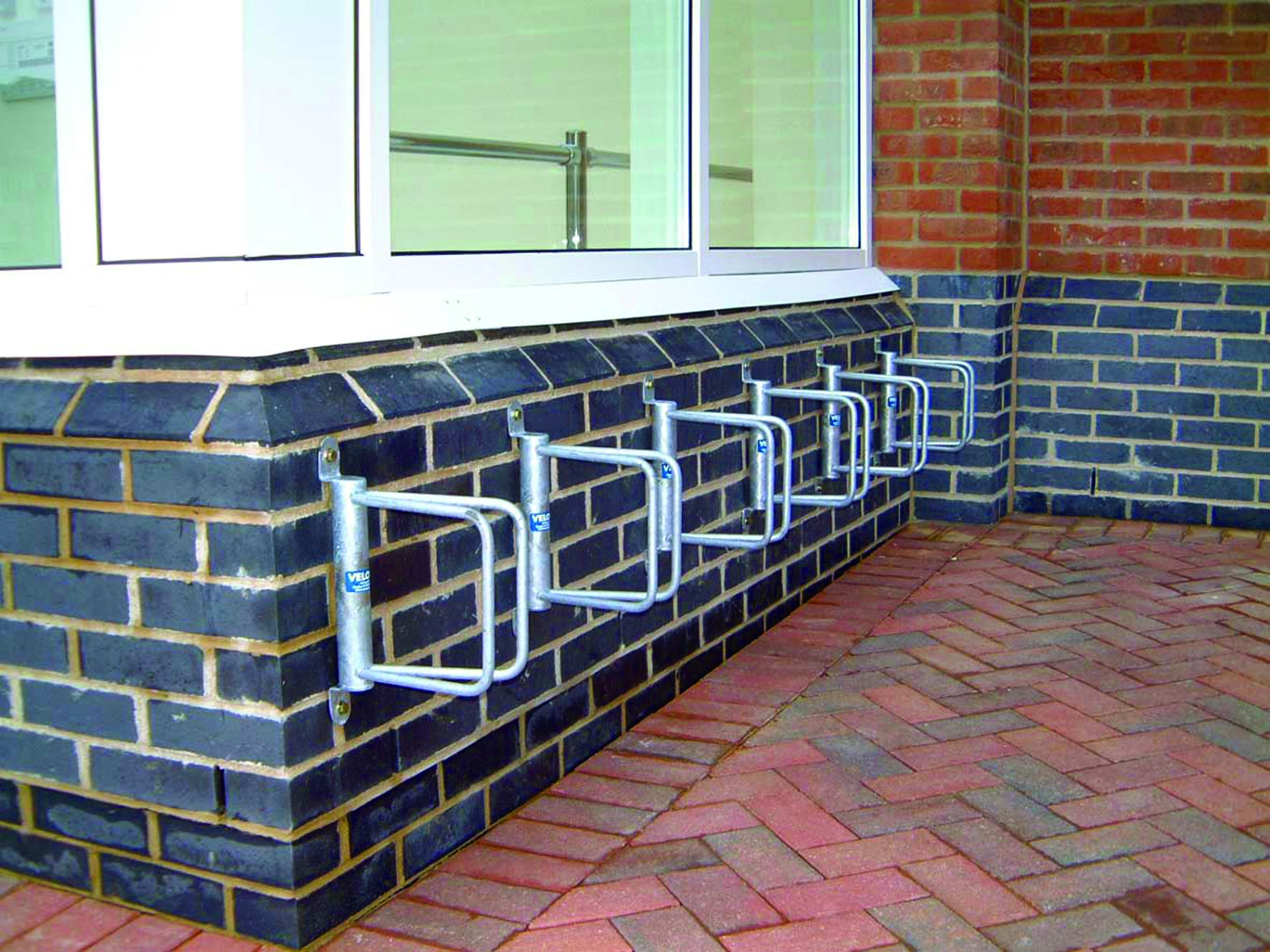

The simplest cycle holder, a familiar sight throughout the UK, allows the tyre of the bicycle to be supported. The stand is fixed to a suitable wall and can be spaced at not less than 610mm between holders for cost effective cycle parking.

The Model R is available in either 90° or 45° versions which allow for cycles to be parked either head-on or angled.  The practical and durable nature of the VELOPA Model R cycle holder ensures it has been consistently specified and used since it’s introduction in the 1950’s.

FEATURES

  • Suitable for one bicycle.
  • For bolting to a suitable brick or concrete wall.
  • Manufactured from galvanised mild steel bar and tube.
  • Available set at 90 or 45 degree angles.
  • Can be used for single or double level parking (in conjunction with the VELOPA BC Ramp).

 SPECIFICATIONS

  • 310mm overall height
  • 203mm maximum from wall (90 deg.)
  • 178mm maximum from wall (45 deg.)
  • 89mm overall width

ADDITIONAL INFORMATION

  • For bolting to the wall only (10mm bolts are available extra)
  • BC ramps available to use with double level option (for details see data sheet).
  • Also available as a rack or stand.
