Hillmorton Cycle Stand

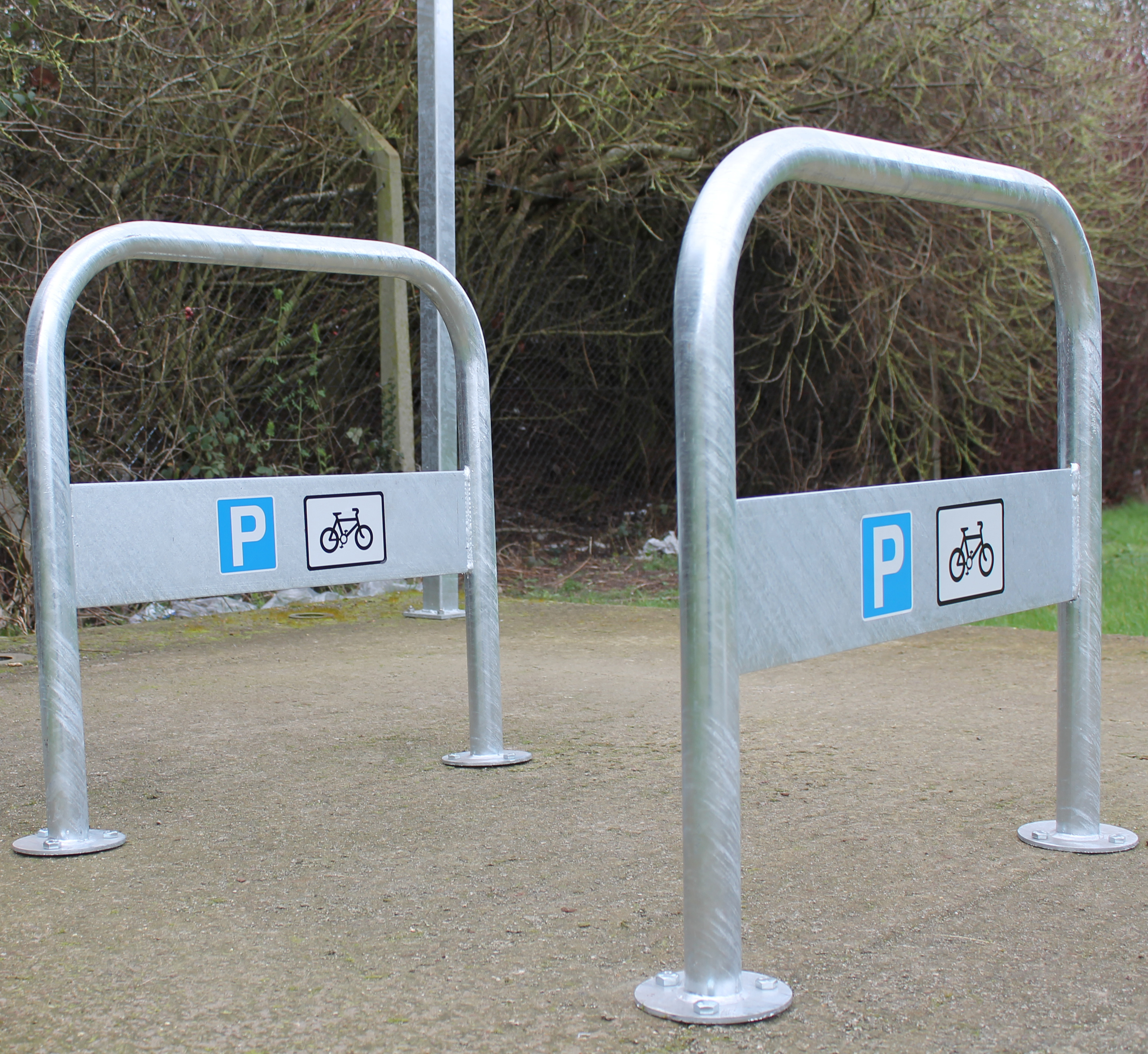

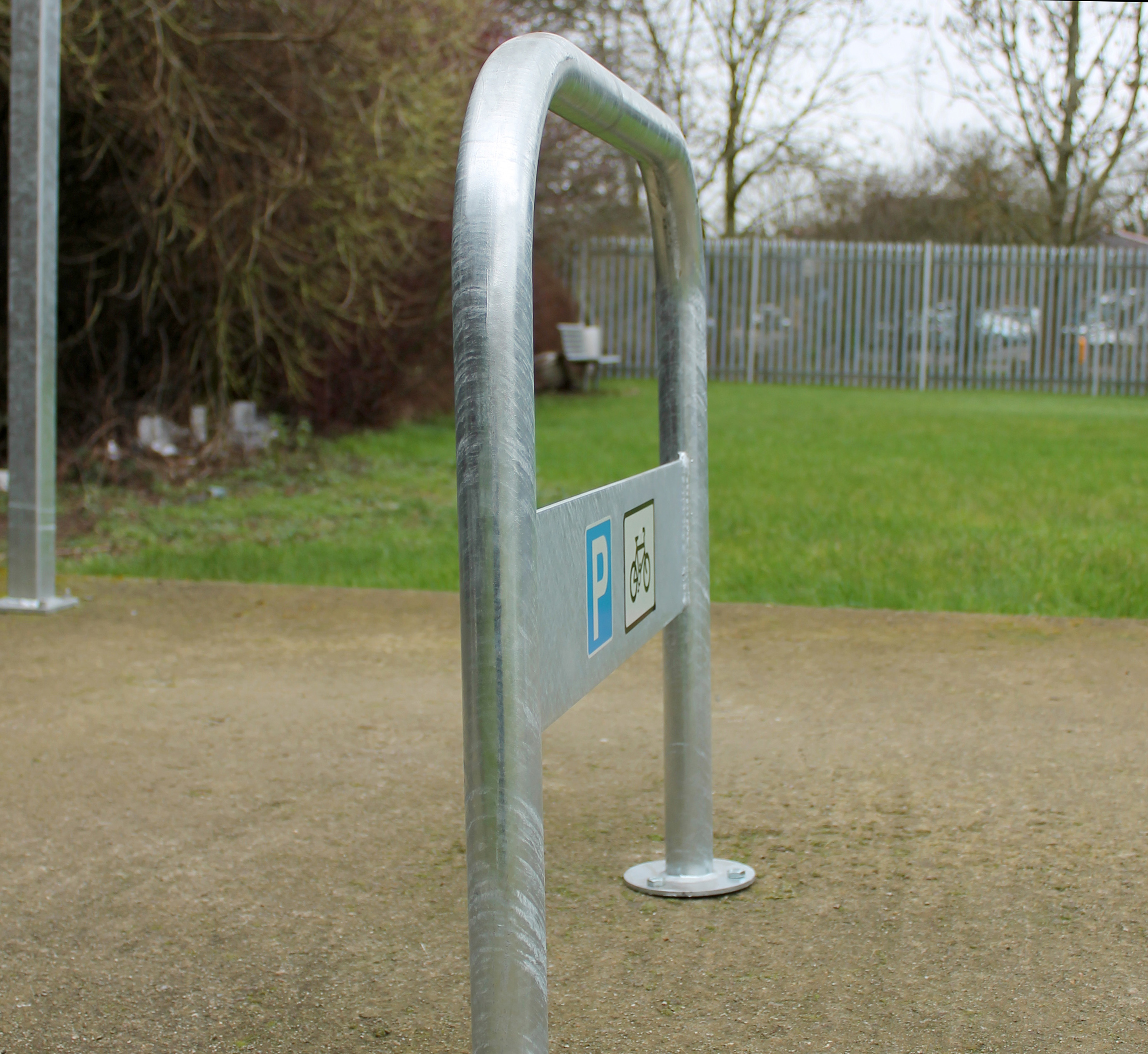

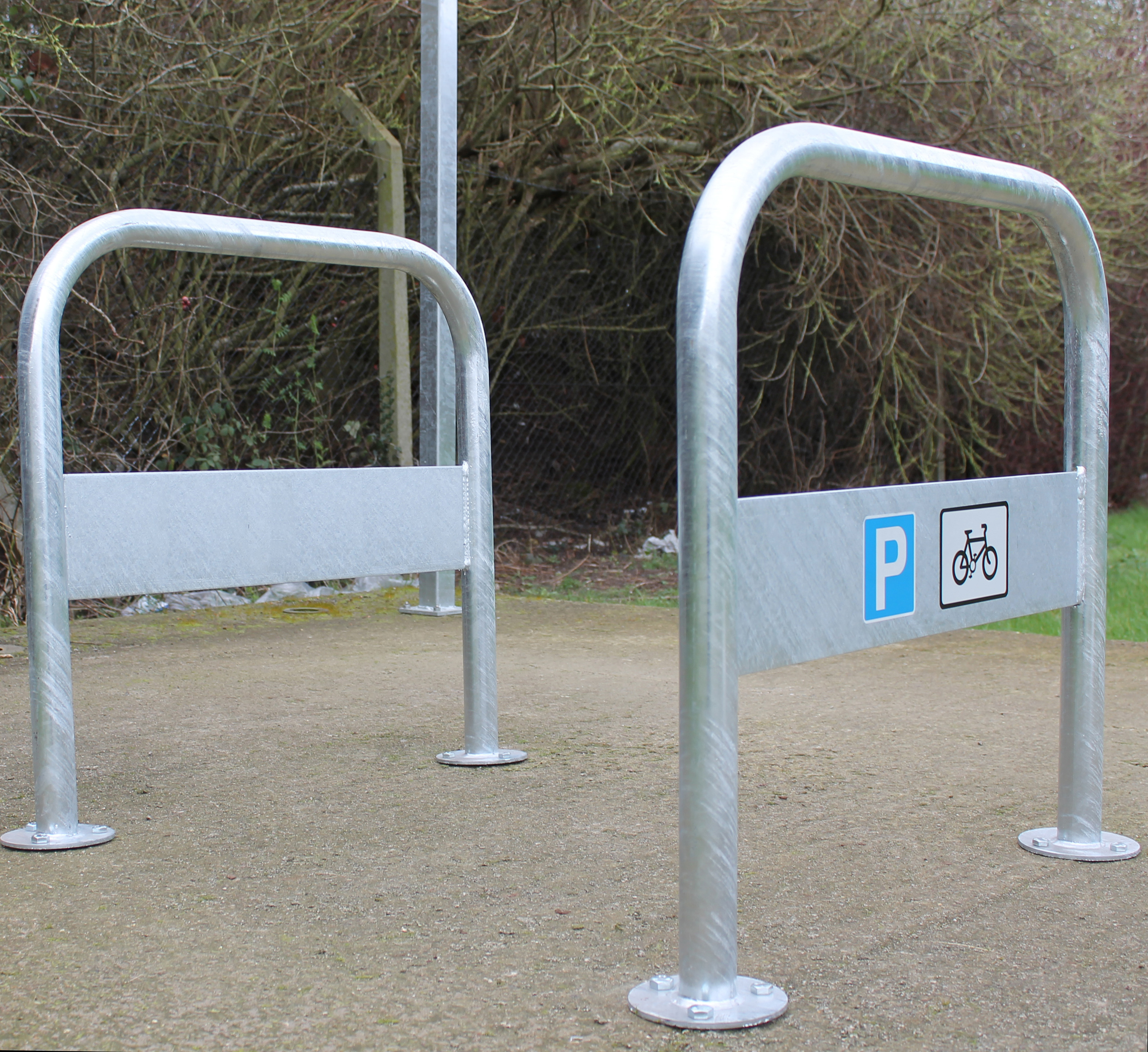

The Hillmorton Cycle Stand is based on the popular Sheffield Cycle Stand. A familiar sight throughout the UK, the design allows the frame and wheel of the bicycle to be secured by the cyclists own lock. Each stand is suitable for securing two bicycles at once. The Hillmorton Cycle Stand has an integrated signage plate, with the Cycle Parking ‘P’ and cycle symbol signs incorporated into the design as standard. The lower edge of the signage plate sits 350mm above the ground.

Manufactured from galvanised mild steel; this practical and durable stand is ideal for busy public areas. Supplied galvanised and ragged as standard; flanged, colour coated and stainless steel versions are also available. RAL number must be specified at time of order. Reflective tape can be added to maximise visibility.

FEATURES

• Mild steel galvanised as standard
• Stainless steel grade 304 available
• Available ragged for casting in to the ground or flanged for bolting down
• Includes bike parking sign

 SPECIFICATIONS

• 750mm above ground
• 800mm overall length
• 48mm diameter tube
• 3mm wall thickness (mild steel)
• 2mm wall thickness (stainless steel)
• 300mm below ground (ragged version)

ADDITIONAL INFORMATION

• Colour coated finishes also available (Galvanised Steel Only)
• Flanged version requires 6no 12mm bolts
• Stainless steel variants are ragged for casting in as standard
